- Unleashing Computing Performance
- Flexible and Scalable Configurations for Hyperconverged Datacenters
- Sophisticated Power and Thermal Design to Avoid Unnecessary OPEX
- Quick Deployment and Maintenance
POWERING TOMORROW’S FRONTIERS OF COMPUTING
Our new milestone platforms are powered by the latest Intel® Xeon® Scalable Processor, boasting significant upgrades to performance, acceleration, bandwidth, and connectivity from the last generation. In addition to leveraging these upgrades, we’ve introduced redesigns and innovations down to the smallest detail to deliver the next tier of computational performance.
High Efficiency Compute Server

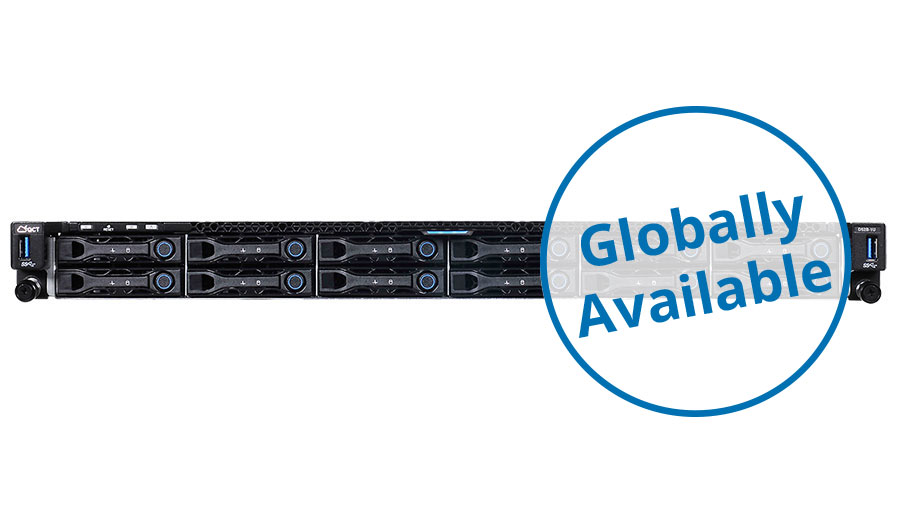

QuantaGrid D52B-1U
Defying Physical Limitations
QuantaGrid D52BQ-2U
Scale Along with Your Business
- Unleashing Computing Performance
- Flexible and Scalable Configurations for Hyperconverged Datacenters
- Sophisticated Power and Thermal Design to Avoid Unnecessary OPEX
- Quick Deployment and Maintenance

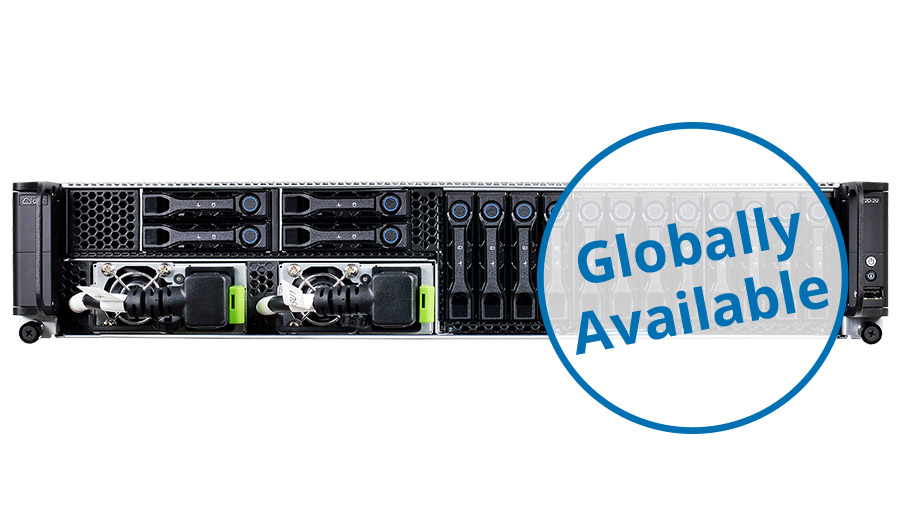

QuantaGrid Q72D-2U
4-socket Dense Memory Compute Server
- Up to 6TB Memory Capacity
- Supporting Top Bin Intel Xeon Scalable Processors
- 16x High Efficiency U.2 SSD
- Easy Service Fans and Tool-less Bays
High Density Multi-Node Server

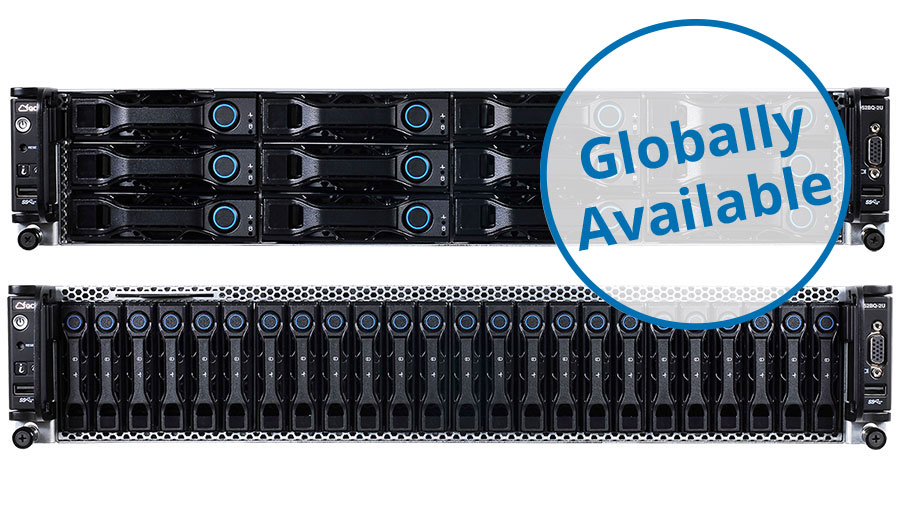

QuantaPlex T42S-2U (4-node)
Ample Performance Multi-Node server
- Unleashing Computing Performance
- Additional M.2 SSD for OS Installation
- Shared Infrastructure Provides Better Space and Energy Utilization
- Easy Service and Maintenance

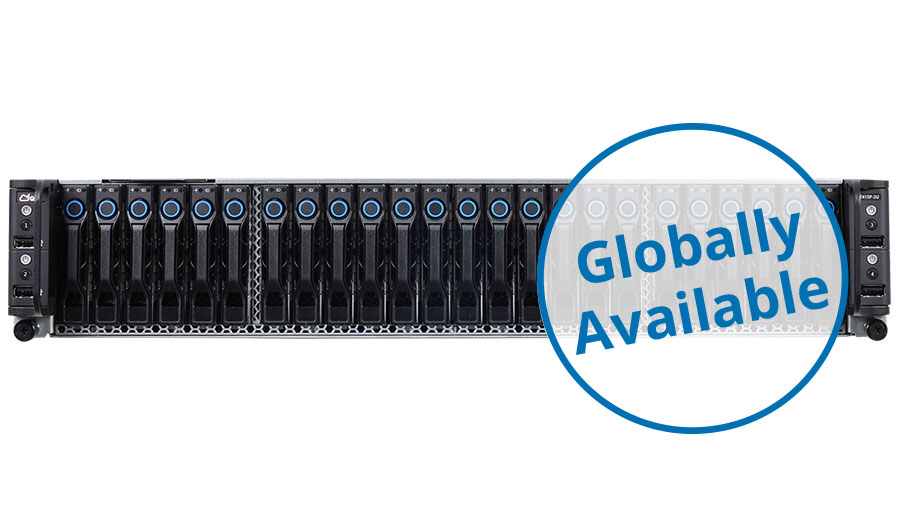

QuantaPlex T42SP-2U (4-node)
Ample Performance Multi-Node server with Additional NVMe Tier
- Unleashing Computing Performance
- Guaranteed Rapid I/O with Additional NVMe Storage Tier
- Shared Infrastructure Provides Better Space and Energy Utilization
- Easy Service and Maintenance

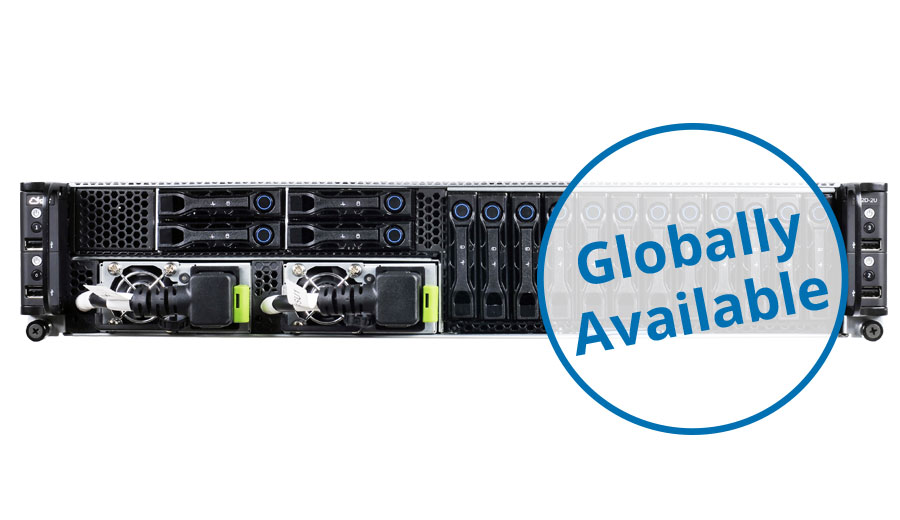

QuantaPlex T42D-2U (4-node)
Ultra-Dense Memory Multi-Node Server
- 24x DIMM Slot per node
- Extra Memory Capacity per CPU Core for Virtual Machine
- High Density and Easy Service 2U 4-node System
- 2x SATA M.2 per node for OS

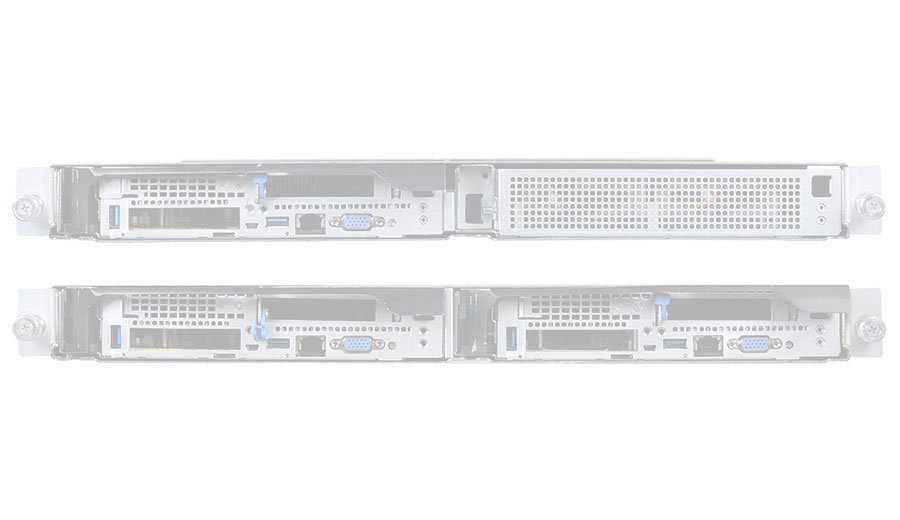

QuantaPlex T22SF-1U (2-node)
Transforming High Density Design
- High Density Design with Minimized Fail Domain
- Hyperscale Service Philosophy Designed for the Traditional 19" Space
- Cold Aisle Positioning Supports Higher TDP Technology without Diminishing Performance Efficiency
- Compute and Storage Sled Options for Flexible Workload Applications
High Scalability AI Acceleration Server

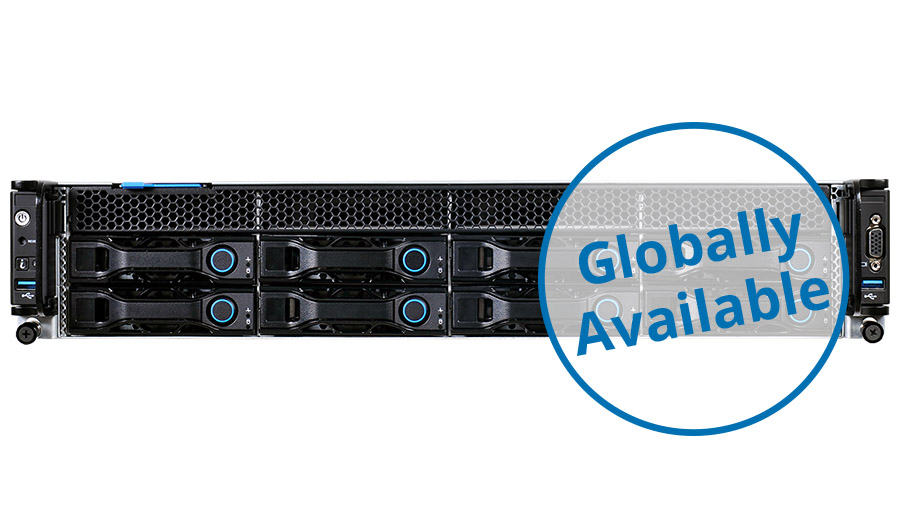

QuantaGrid D52BV-2U
Accelerated Supercomputing Performance
- Up to 4 dual-width accelerators within 2U general purpose chassis
- Delivering peak performance with dual top-bin Skylake-SP processors and up to 7TB memory capacity
- 8x flexible storage bays for either LFF/ SFF or U.2 drives
- 100Gb/s connectivity with infiniband or Intel Omni-path options

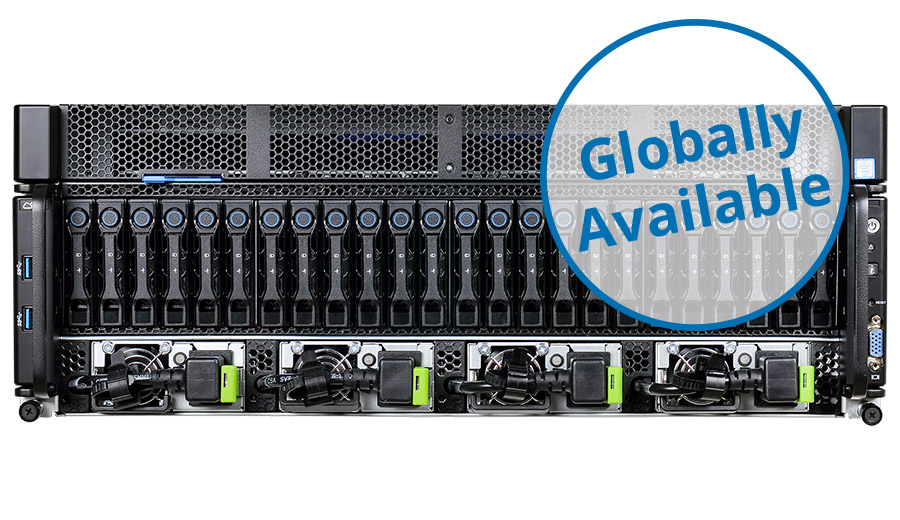

QuantaGrid D52G-4U
High Density GPU Server
- Up to 10x Dual-Width or 20x Single-Width Acceleration Cards
- Supporting Multiple PCIe Routing Topology
- 24x SFF drive bays including up to 8x U.2
- Up to 4x100Gb/s RDMA over GPU/Xeon Phi™
High Capacity Storage Servers

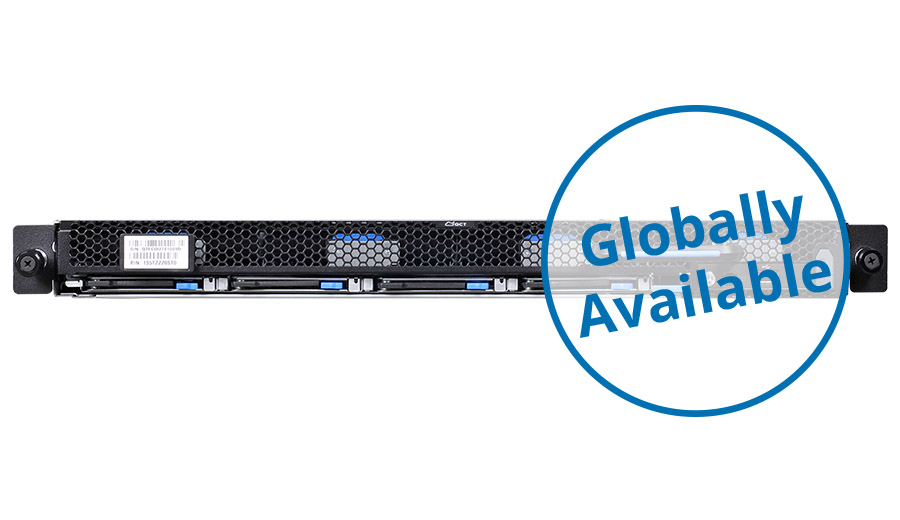

QuantaGrid D52T-1ULH
The Revolution of Hyper-Converged Storage
- Ultra Dense 1U 12x Hot-Swappable HDD and 4x Hot-Swappable U.2
- High Performance Intel® Xeon® Scalable Processors
- Sophisticated Hybrid Architecture for Ceph Storage
- High System Serviceability

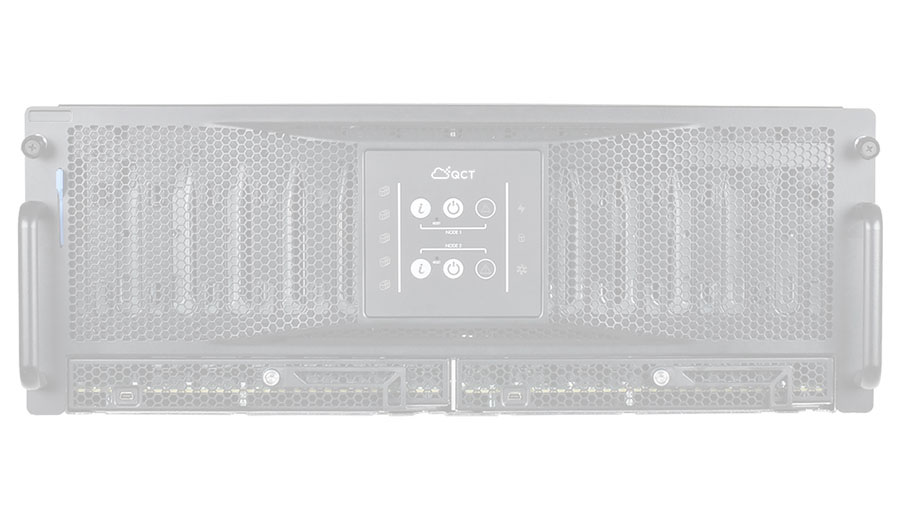

QuantaGrid T22P-4U
High Density Storage Server
- Up to 78pcs Tooless HDD Bays
- High Performance Intel® Xeon® Scalable Processors
- With Single or Dual Computing Node Options
- High Availability with Redundant Fans and Power Supplies

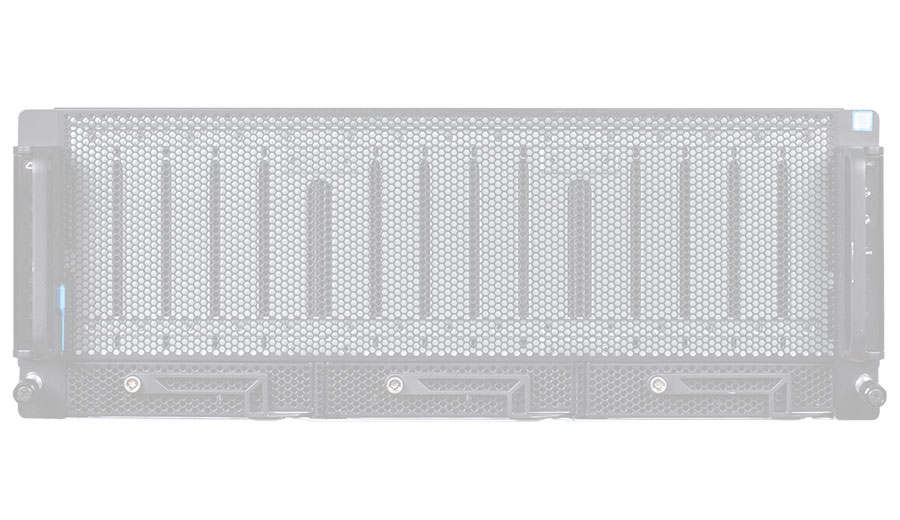

QuantaGrid D52PL-4U
Extreme Capacity Storage Server
- 102pcs Top-Accessed, Tooless HDD Bays
- Extra 2pcs SSD for Fast Booting
- High Availability with Redundant Fans and Power Supplies
TOOL-LESS DESIGN
Out of the many build designs QCT has tested over the years, our one-click innovations provide the greatest efficiency and quickest time-to-value. This no-screw, one-touch feature is applied on every device to reduce operational error, service time and resource cost, from component all the way up to datacenter level, immensely boosting datacenter uptime.

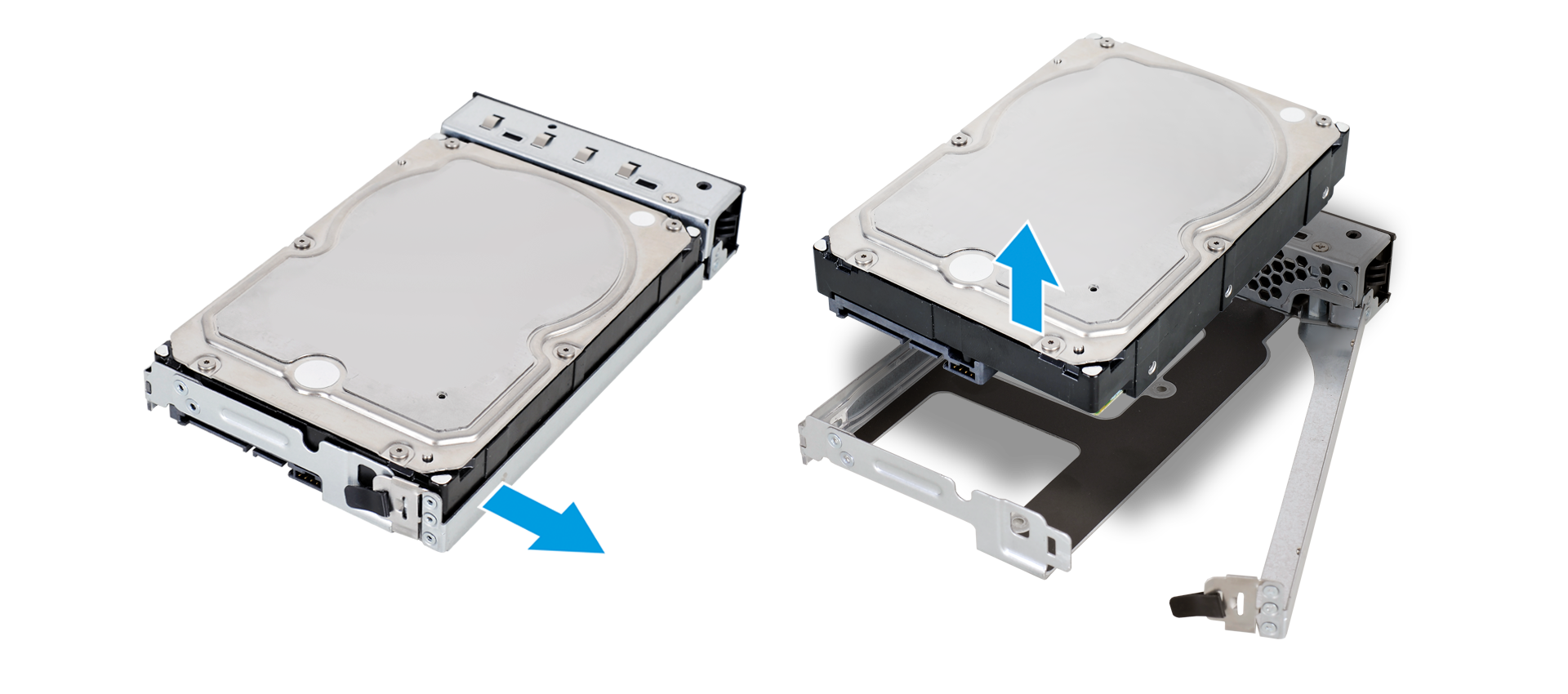

LFF Drive Bay

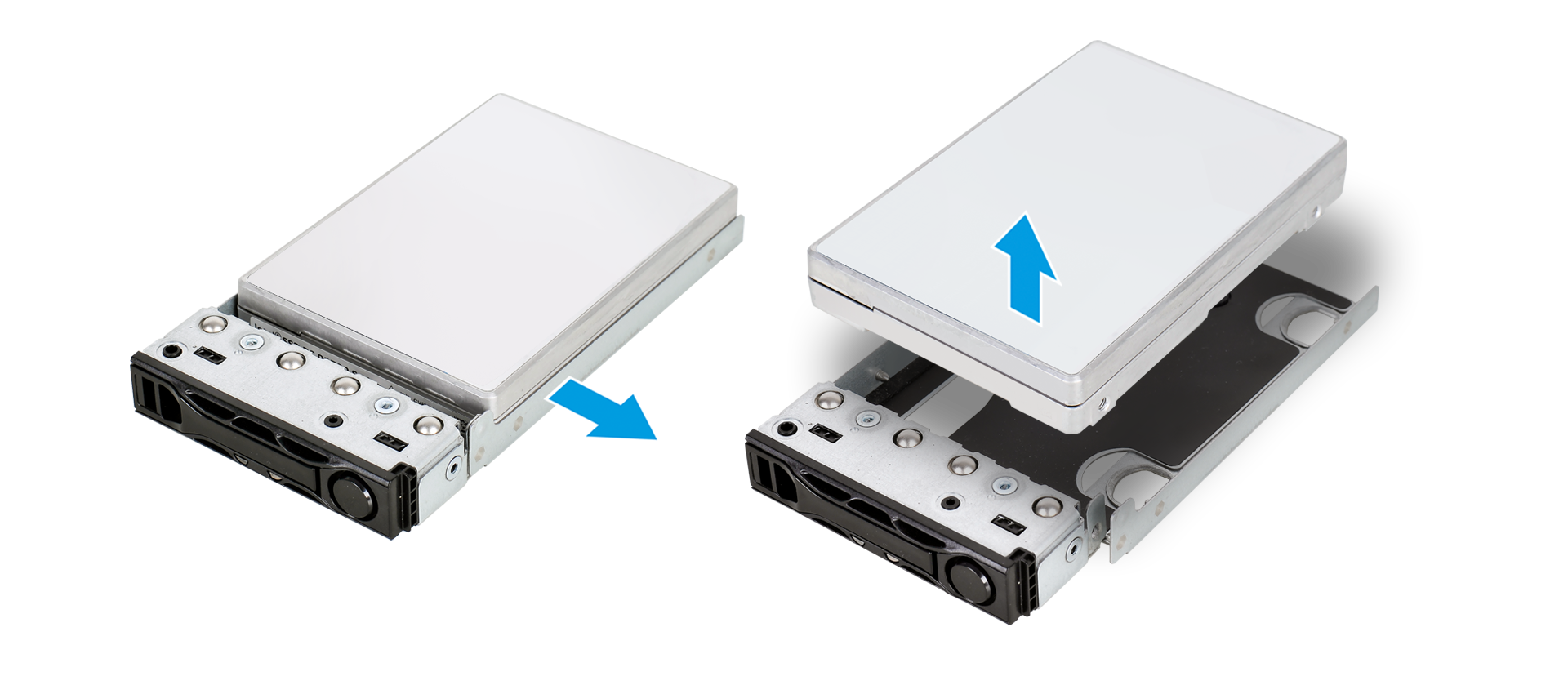

SFF Drive Bay

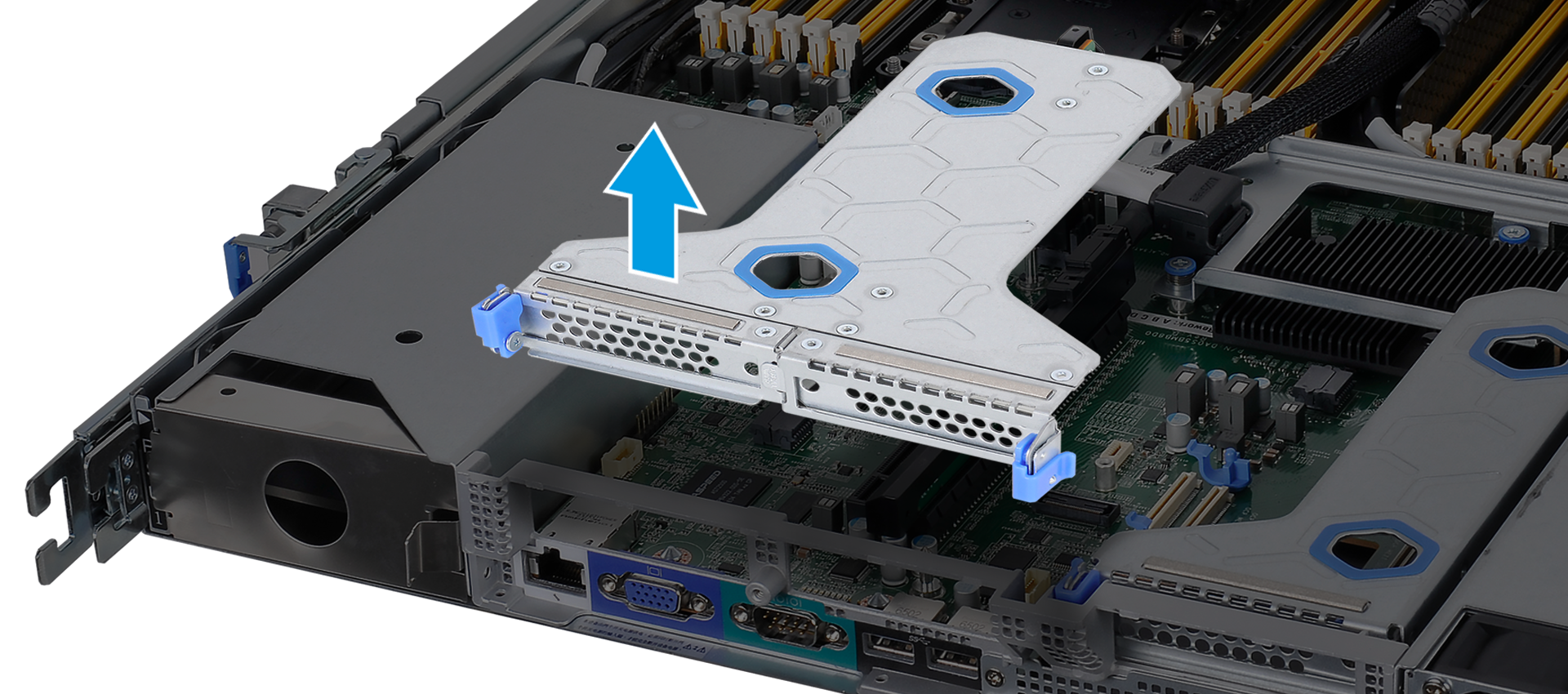

PCIe Riser Bracket

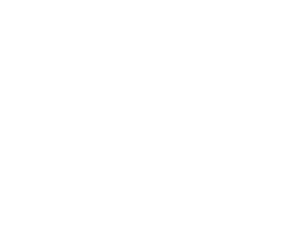

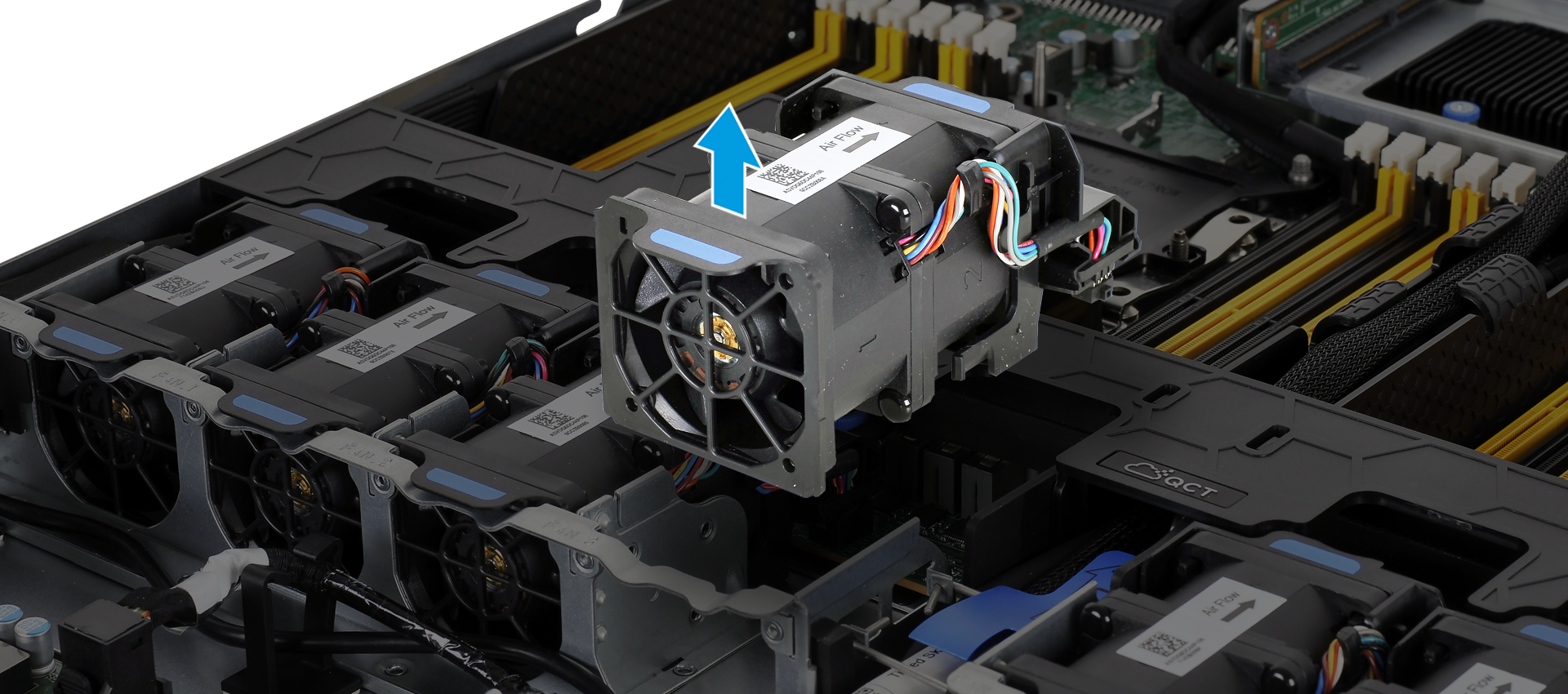

Fan Module
Super fast NVMe SSDs
The QCT 2nd Generation Server platforms widely utilizes the latest generation NVMe SSDs in place of SATA drives in a variety of forms, multiplying the platform’s speed and performance exponentially to deliver the fastest bandwidth, greater IOPS, and lower latency.

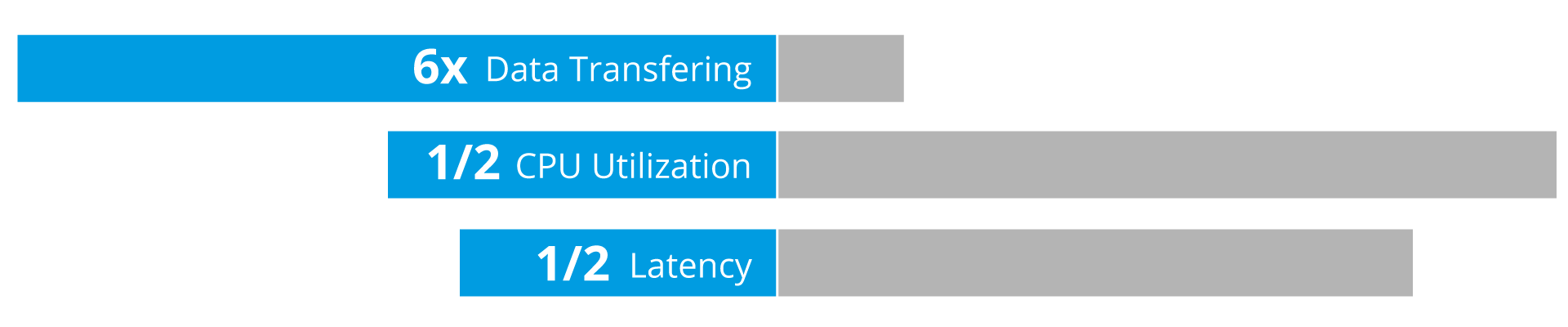

NVMe vs SATA
Next-Generation NVMe SSDs offer an incredible increase in performance over SATA drives. Using the NVMe protocol which takes advantage of the fastest bandwidth, the drives offer a clear advantage for users looking to boot their OS faster, load applications in a flash, and access large files without waiting.
Once You Go NVMe SSD, There's No Going Back

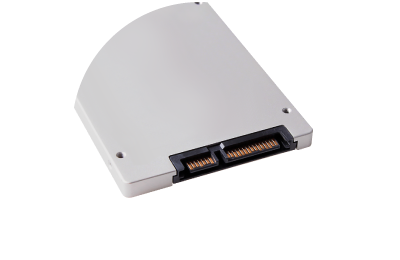

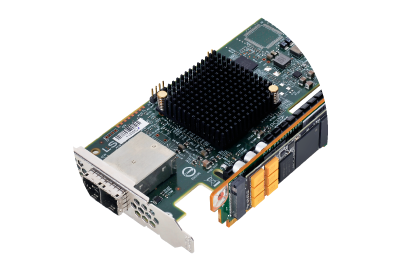

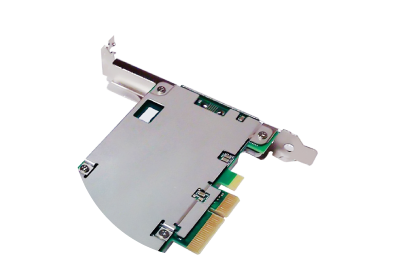

Since its birth, NVMe SSDs are now even faster and come in a variety of forms. With sophisticated engineering and design, QCT next generation platforms accommodate all three kinds of NVMe SSD form factors, including add-in cards, U.2 and M.2, to ensure that user applications can benefit from the best performance available.

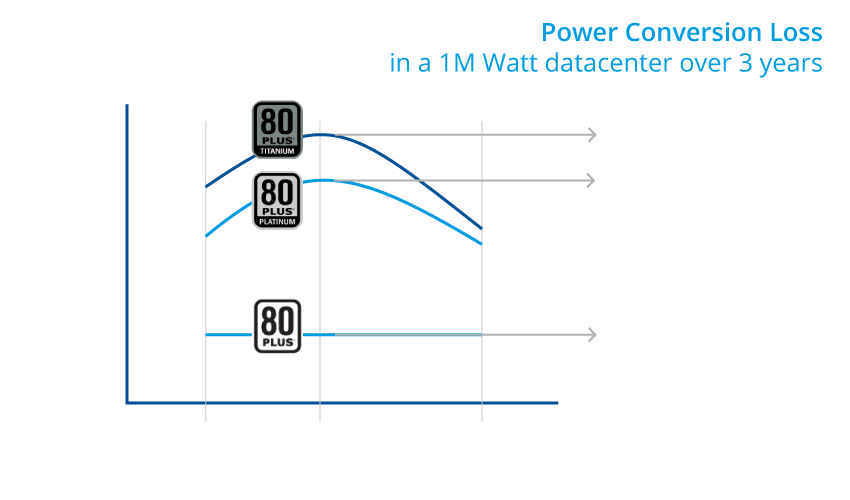

MAX POWER SAVINGS
Following advanced new energy standards, the QCT 2nd Generation server platforms delivers power at
an all-time-high conversion rate with minimal energy loss, a 70% Power conversion loss savings
ADVANCED COOLING
Thoughtfully engineered thermal designs increase the efficiency and stability of cooling subsystems, delivering the most precise CFM and power required while minimizing power consumption at peak performance.

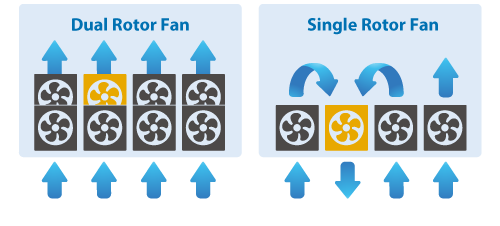

Redundant Cooling for High Availability
QCT dual rotor fans maintain non-impact performance. Compared to a single fan design, a dual rotor fan keeps the system’s internal air flowing in the right direction if one rotor fails, enhancing product stability and durability.

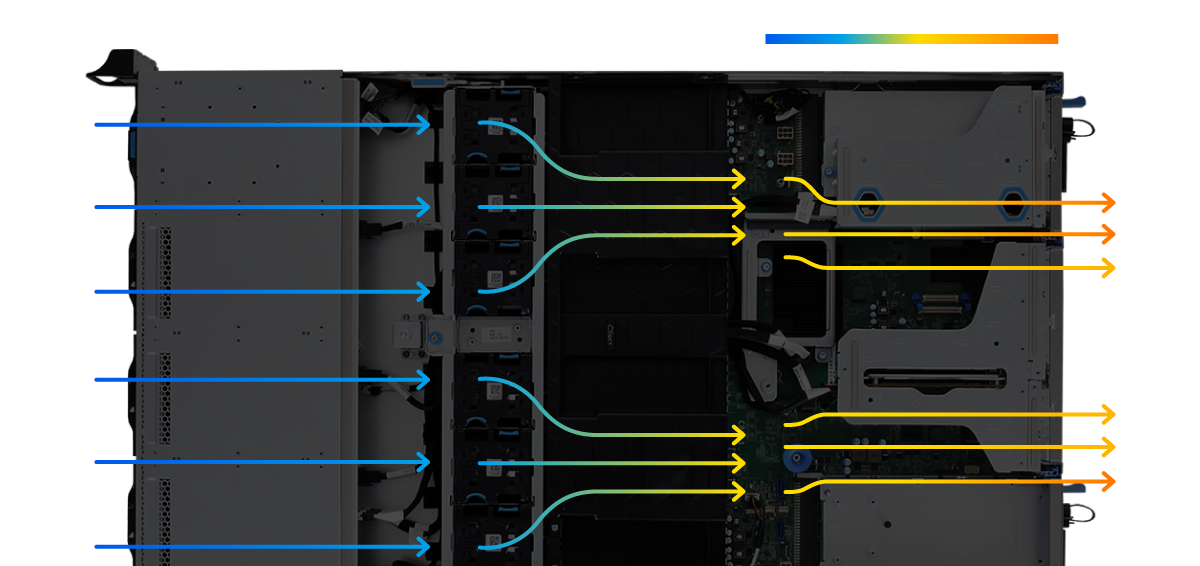

Engineering Air Flow

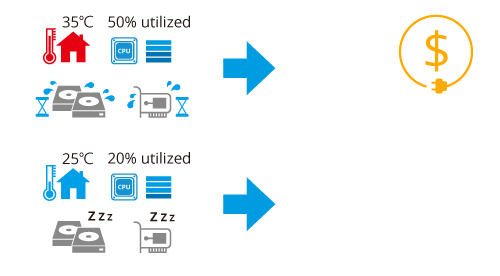

Smart Fan Mechanism
QCT’s patented smart fan table is cleverly devised to adjust fan duty dynamically according to ambient temperature, CPU utilization, and system workload to avoid over-cooling.
DATA CENTER MANAGEMENT CONSOLE
QSM (QCT System Manager)
Hyper scale data center management that is intuitive, consolidated, simultaneous, and simplified.QSM, an intuitive hyperscale data center management console, makes monitoring and managing QCT hardware easy. Consolidate and remotely manage up to 5000 nodes across computing, storage and networking systems in the architecture.
- Agent-less
- Manageability converges across computing servers, storage server, and networking.
- Hyper scale management (up to 5000 nodes)
- Easy remote management
- Easy-to-use interface with a customizable dashboard
